Phecda SD2

Linear Suspension Direct

2 inch

8 W/ft

101 lm/W

Mounting

Power

Efficiency

Width

Download

Installation Guide

Options

Finish

Colour

Length

Mounting

Series

SD2

2” aperture

S - Suspension
W - Wall mount
C - Celling mount
4 - 4 Feet
6 - 6 Feet
8 - 8 Feet
C - Custom
30K - 3000K
35K - 3500K
40K - 4000K
3CCT - 30/35/40K
BK - Black
WH - White
EMC - Emergency Driver
[Blank] - None

Ordering Code:

Colour Options

Black

White

Silver

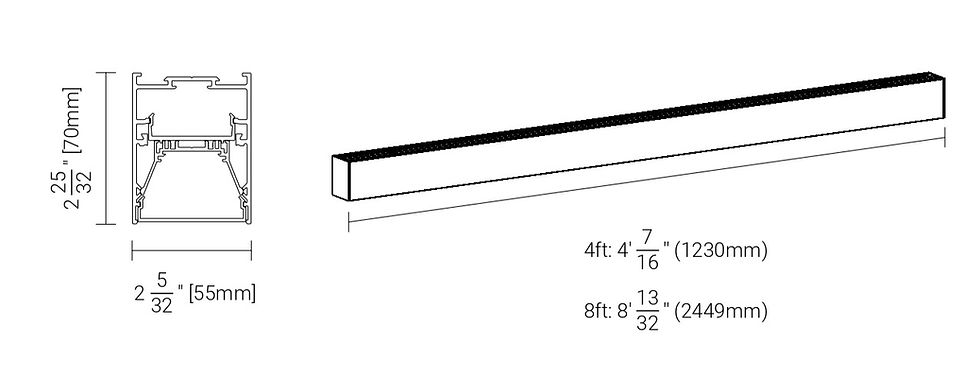

Dimensions

General Description

Description

The minimalist linear design of Line collection offers a contemporary appeal and a pleasant ambient light. It is available in surface mount, Wall mount or suspended versions. The acrylic diffuser, enclosed in an extruded aluminum housing, evenly distributes the light and totally eliminates bright dots. The Line comes in a range of sizes from 4 feet and 8 feet to adapt to various ceiling areas.

Specifications
  • CRI: 90+

  • Bean Angle: 96°

  • IP Grade: IP40

  • Power: 8W/ft

  • Lumen: 725~775lm/ft

Specifications
  • Efficiency: 94~101lm/W

  • Voltage [V]: AC100-277V / 50~60Hz

  • Dimming Range: 0-10V / 1~100%

  • Operating Temperature: -20°C ~ +45°C

  • Warranty: 5 years

Description

The minimalist linear design of Line collection offers a contemporary appeal and a pleasant ambient light. It is available in surface mount, wall mount or suspended versions. The acrylic diffuser, enclosed in an extruded aluminum housing, evenly distributes the light and totally eliminates bright dots. The Line comes in a range of sizes from 4 feet and 8 feet to adapt to various ceiling areas.

Specifications
  • CRI: 90+

  • Beam Angle: 96°

  • IP Grade: IP40

  • Efficiency: 725~775lm/ft

  • Dimming Range: 0-10V / 1~100%

  • Voltage [V]: AC100-277V / 50~60Hz

  • Operating Temperature: -20°C ~ +45°C

  • Warranty: 5 years

Dimensions

Colour Options

Black

White

Silver

2 inch

8 W/ft

101 lm/ft

Mounting

Width

Power

Efficiency

Phecda SD2

Linear Suspension Direct

Download

Installation Guide

General Description
